Homeowners are increasingly looking for ways to maximize the power generated by their rooftop solar panels. Instead of sending excess energy back to the grid, they want to store it for nighttime use or power outages. This surge in demand places solar installers squarely at the center of a critical technical decision. You have to recommend the right hardware to ensure a reliable, efficient, and safe energy storage setup.
At the heart of this decision is the ongoing debate of 48V vs High Voltage architectures. For years, the 48V battery pack has served as the undisputed standard for residential off-grid and hybrid setups. It provided a reliable foundation that worked seamlessly with early inverter technology. Recently, high voltage systems have entered the residential and light commercial markets, promising improved efficiency and scalable capacity.
Choosing the right solar power battery requires a deep understanding of how these two system types operate. Installers must balance upfront equipment expenses, long-term efficiency, and strict safety protocols to deliver the best results. This guide breaks down the core differences between low voltage and high voltage storage systems to help you make the right call for your next project.
Dealing with electricity always carries inherent risks. The baseline DC voltage of a storage system dictates how you must approach the physical installation and what certifications your team needs.

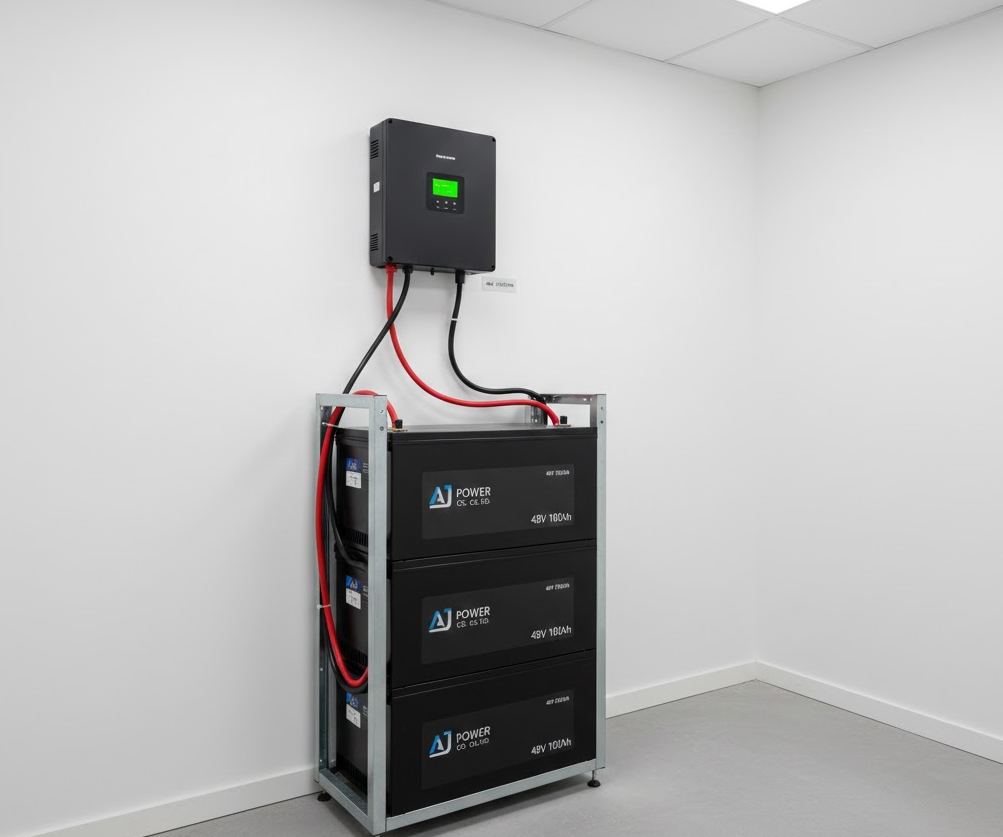

A standard 48V low voltage system operates well below the hazardous voltage threshold. Because the electrical potential remains relatively low, these systems are widely considered touch safe. This specific designation drastically reduces the risk of a dangerous arc flash during the installation process or routine maintenance. Installers can handle cables and connect a LiFePo4 battery with a much wider margin of safety. For example, a system like a 51.2V rack-mounted smart energy storage solution offers incredible convenience and a highly forgiving safety profile for residential setups.
High voltage systems operate on a completely different level. Units like a 192V stacked high voltage power supply require a much stricter approach to safety. Because the DC voltage is elevated, the potential for a severe arc flash increases significantly if a short circuit occurs. Working with these powerful systems requires specialized installation training. Your technicians must know exactly how to isolate components, use appropriately rated personal protective equipment, and follow complex commissioning procedures.
Regardless of the voltage you choose, the underlying battery chemistry plays a massive role in overall safety. Using a high-quality LiFePO4 battery ensures excellent thermal stability. This lithium iron phosphate chemistry is highly resistant to thermal runaway, providing peace of mind for both the installer and the homeowner.
The primary goal of any solar storage setup is to capture and utilize as much generated power as possible. The flow of electricity from the solar panels to the home's electrical panel involves multiple steps, and each step presents an opportunity for energy to escape.
When a battery pack discharges, the electricity must pass through a solar inverter to convert the DC power into usable AC power for the house. This process inevitably results in some level of conversion loss. High voltage systems excel at minimizing this specific type of energy waste. A high voltage battery operates much closer to the internal operating voltage of a modern hybrid solar inverter. Because the inverter does not have to step the voltage up drastically, the conversion process is remarkably efficient.
A 48V system requires the solar inverter to pull in low voltage DC power and boost it significantly to match the household AC requirements. This heavy lifting results in a slightly higher conversion loss. While the efficiency drop might seem minor on a daily basis, it can add up over the lifespan of the equipment. However, high-quality 48V systems still provide excellent overall performance, especially when paired with an inverter specifically optimized for low voltage inputs.
Balancing the project budget is a daily reality for solar installers. The choice between a 48V vs High Voltage system significantly influences the total cost of materials.
Because 48V systems have dominated the market for so long, the components benefit from massive economies of scale. You can easily source a highly reliable, cost-effective solar inverter designed for a 48V input. Additionally, the battery BMS cost (Battery Management System) for a low voltage unit is generally quite affordable. The BMS only needs to monitor and balance a relatively small number of battery cells connected in series.
High voltage systems often present a different financial picture. The battery BMS cost is typically higher because the system must precisely manage a long string of cells to maintain the elevated voltage safely. The specialized high voltage solar inverter can also carry a premium price tag.
However, high voltage setups offer a distinct financial advantage when it comes to cabling. Pushing a large amount of power at a low voltage requires incredibly thick, expensive copper cables to prevent overheating. A high voltage system pushes the same amount of power using much thinner wires. This reduces your material costs and makes the physical cable routing much easier during installation.
Feature | 48V Low Voltage Systems | High Voltage Systems (e.g., 192V+) |
|---|---|---|
Safety Profile | Touch safe, minimal arc flash risk | Requires advanced safety protocols |
Installation Training | Standard solar/battery training | Specialized high voltage certification |
Conversion Loss | Slightly higher due to voltage stepping | Lower, highly efficient inverter matching |
Inverter Cost | Generally lower, widely available | Can be higher, requires specialized units |
Battery BMS Cost | Lower, manages fewer series cells | Higher, manages complex cell strings |
Wiring Requirements | Thick, expensive copper cables | Thinner, more manageable cables |
No. Your battery pack voltage must match the input specifications of your solar inverter. Attempting to connect a high voltage battery to a 48V inverter will cause immediate, catastrophic hardware failure. Always verify component compatibility before beginning an installation.
Bluetooth monitoring is extremely common in low voltage setups, such as a 25.6V 200Ah battery, allowing homeowners to check cell health from a smartphone. While some high voltage systems offer Bluetooth, they more frequently rely on hardwired communication cables (like RS485 or CAN bus) connecting directly to the inverter's monitoring portal for maximum reliability.
LiFePO4 (Lithium Iron Phosphate) offers an exceptionally long cycle life, often exceeding 6,000 cycles. It also provides superior thermal and chemical stability compared to other lithium-ion chemistries. This makes it the safest and most durable choice for stationary home energy storage, regardless of the system's operating voltage.
There is no single correct answer when deciding between a low voltage and high voltage storage system. The best choice depends entirely on the specific demands of the property and the budget of the homeowner.
If you are outfitting a standard residential home, a 48V system often provides the best balance of safety, component availability, and proven reliability. The lower installation complexity and affordable hardware make it an easy recommendation. For larger properties or light industrial applications that demand massive power throughput, a stacked high voltage system delivers the raw efficiency and performance required.
Take the time to evaluate the total energy consumption of your client's property before specifying the hardware. By aligning the system voltage with the true energy needs of the site, you ensure a smooth installation and years of reliable, off-grid capability.
