Living independently from the utility grid offers a sense of freedom and security that few other lifestyle changes can match. However, the dream of energy independence quickly fades if your lights flicker every time the refrigerator turns on, or if your system shuts down completely during a string of overcast days. The success of Off-Grid Solar Solutions rarely depends on the solar panels alone; it relies heavily on the "heart" and "lungs" of the system: the inverter and the battery bank.
Designing a robust system requires more than just picking components with impressive spec sheets. You must ensure those components speak the same language. The relationship between your inverter and your energy storage is the most critical technical handshake in the entire setup. If this connection is weak or mismatched, efficiency plummets, and hardware lifespan degrades.
This guide walks through the essential engineering principles needed to match inverters and batteries correctly, ensuring your off-grid home stays powered through winter storms and summer heatwaves alike.

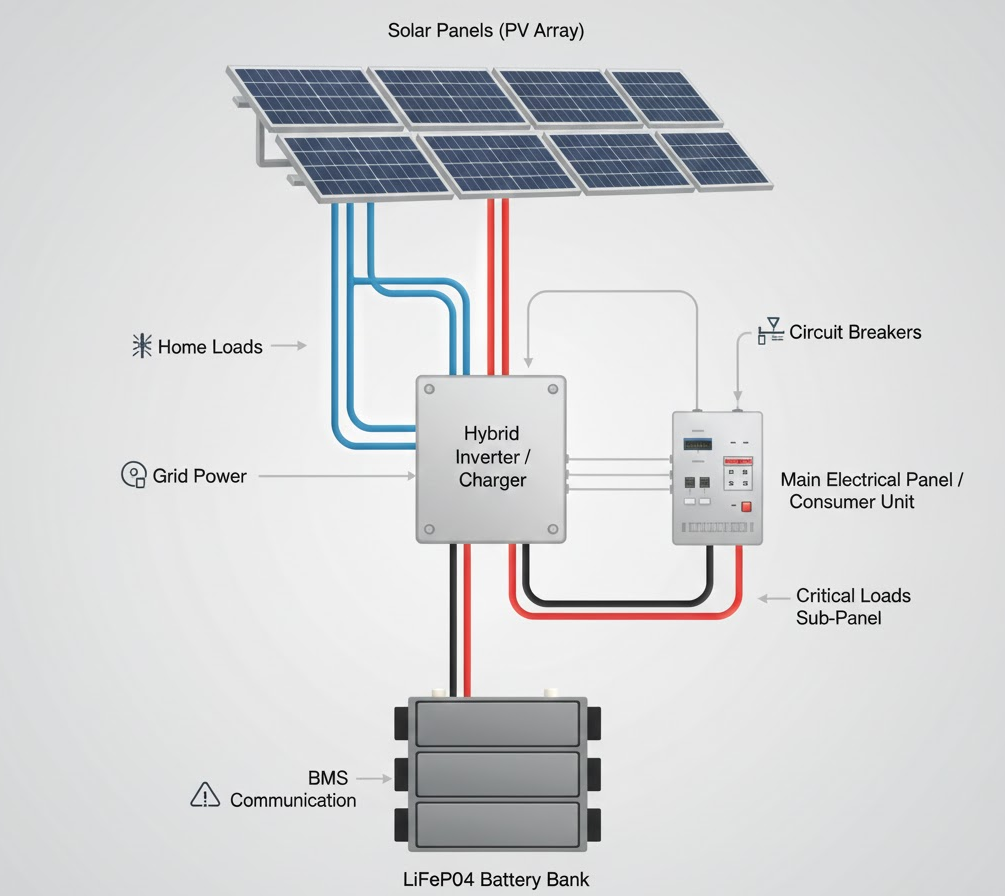

Before calculating loads, it is vital to understand that an off-grid system is an ecosystem. The solar panels generate energy, the power solar battery stores it, and the inverter converts it into usable AC electricity for your appliances.
When these components are not balanced, you create bottlenecks. An oversized inverter with a small battery bank will drain the storage too quickly, causing voltage sag and potential system cut-offs. Conversely, a massive battery bank with a small solar array may never reach a full state of charge, leading to chronic undercharging and sulfation (in lead-acid batteries) or capacity loss.
The first decision in system design is selecting the system voltage. This is not arbitrary; it dictates the efficiency of your system and the thickness of the wiring required. The nominal DC voltage of your inverter must match the nominal DC voltage of your battery bank.
While 12V systems are common in RVs and small camper setups, they are rarely suitable for full-scale residential off-grid living. As the power requirement increases, a higher voltage becomes necessary to keep the electrical current (amperage) manageable.
Power (Watts) equals Voltage (Volts) times Current (Amps). To deliver 3,000 watts of power at 12 volts, you need 250 amps of current. That requires cables as thick as a thumb to prevent fire hazards and energy loss. To deliver that same 3,000 watts in a 48V system, you only need 62.5 amps.
For most residential Off-Grid Solar Solutions, a 48V architecture is the gold standard. It allows for high voltage efficiency, thinner copper wiring (saving money), and better compatibility with modern, high-capacity inverters.
Use the following table as a general guide for matching system size to voltage:
Daily Energy Consumption | Recommended System Voltage | Application Example |
|---|---|---|
< 1 kWh | 12V | Tiny cabin, RV, lighting only |
1 - 3 kWh | 24V | Small cottage, energy-efficient weekend home |
> 3 kWh | 48V | Full-time family home, heavy appliances |
Using a 48V system also future-proofs your setup. If you decide to add more solar panels or heavy loads like a well pump or workshop tools later, a 48V backbone can handle the expansion much better than a lower voltage setup.
Once voltage is determined, the next step is capacity. How much energy do you need to store? This is determined by your "days of autonomy"—the number of days your system can power your home without any input from the sun.
Standard practice for residential systems suggests designing for 2 to 3 days of autonomy. If you live in a region with frequent long storms or heavy cloud cover, you might aim for 4 or 5 days.
You must calculate autonomy based on your worst-case scenario, which is usually winter solar production. In December, days are shorter, the sun angle is lower, and cloudy days are more frequent. A battery bank that seems sufficient in July might fail you in January if you haven't accounted for the reduced harvest.
To size your bank, follow this logic:
Determine Daily Usage: Calculate your total daily consumption in watt-hours (Wh).
Apply Autonomy Multiplier: Multiply daily usage by your desired days of autonomy.
Adjust for Depth of Discharge (DoD): Batteries should not be drained to 0%. Lead-acid batteries generally shouldn't go below 50% DoD, while a modern lithium power solar battery can safely go to 80% or 90% DoD.
Example Calculation:
If your home uses 10,000Wh (10kWh) per day and you want 3 days of autonomy with a Lithium battery (80% DoD):
10,000Wh x 3 days = 30,000Wh (Total required stored energy)
30,000Wh / 0.80 (DoD) = 37,500Wh (Total battery bank capacity needed)
If you rely on solar panels alone to recharge this massive bank, you must ensure your array is large enough to refill the battery while simultaneously powering the house once the sun returns.
The architecture of how you connect your generation sources affects efficiency. There are two main ways to connect solar panels to your battery and inverter: DC Coupling and AC Coupling.
DC Coupling has been the traditional choice for Off-Grid Solar Solutions. In this setup, solar panels connect to a charge controller, which regulates DC power directly into the battery. The inverter then pulls from the battery to power AC loads. This is highly efficient for charging batteries.
AC Coupling involves connecting a grid-tie inverter to the solar panels, which converts DC to AC immediately. This AC power goes to a multi-mode battery inverter. This is often used when retrofitting storage onto an existing solar array.
For pure off-grid living, DC coupling is generally superior due to system architecture simplicity and charging efficiency. However, AC coupling has valid use cases, particularly on large properties where the panels are located far from the battery shed (AC travels over long distances better than DC).
Here is a comparison of how they stack up regarding efficiency and application:
Feature | DC Coupling | AC Coupling |
|---|---|---|
Primary Efficiency | Higher efficiency for battery charging. | Higher efficiency for powering daytime loads directly. |
Complexity | Simpler architecture; easier to troubleshoot. | More complex; requires synchronization between inverters. |
Best Application | Small to medium off-grid cabins and homes. | Large microgrids or retrofitting existing solar systems. |
Solar Charging | Works efficiently even with a smaller array. | System may shut down if the battery is full and loads are low. |
When designing a robust system, stick to DC coupling unless you have a specific reason (like distance or existing hardware) to choose AC coupling. It minimizes conversion losses, ensuring that every precious photon captured by your panels ends up stored in your power solar battery.
The final piece of the puzzle is the balance of charge and discharge rates. Your inverter will have a maximum continuous power output, but your batteries also have a maximum discharge current.
If your inverter tries to pull 10kW to start a heavy motor, but your battery bank is only rated to deliver 5kW of continuous current, the system will trip, or the battery management system (BMS) will shut down to protect the cells. Always verify the "C-rating" or maximum discharge current of your chosen battery and ensure it exceeds the peak surge requirements of your inverter.
Designing an off-grid system is an exercise in balance. By matching your voltage correctly, calculating autonomy for the darkest winter days, and choosing the right coupling architecture, you move from a system that merely survives to one that thrives.
