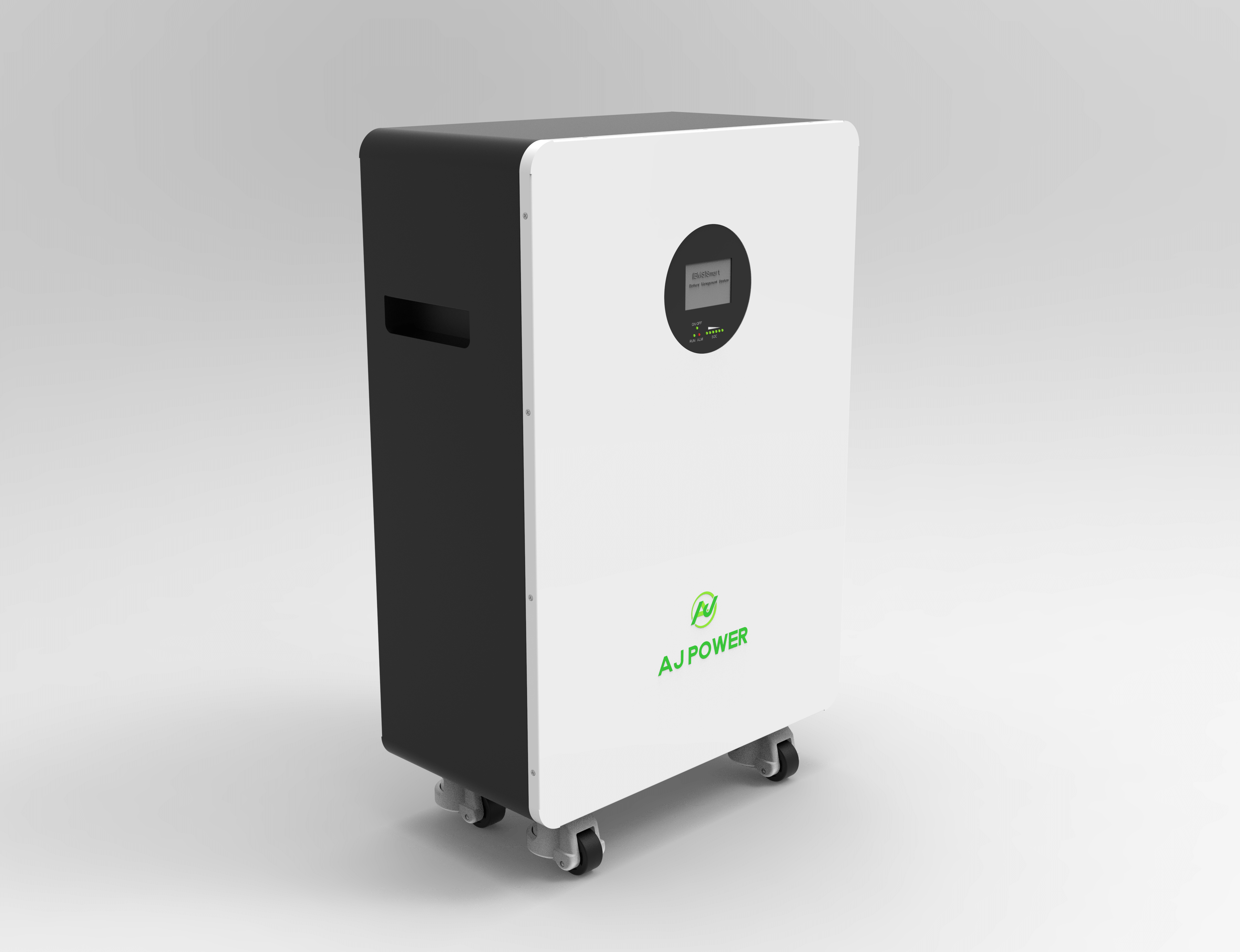

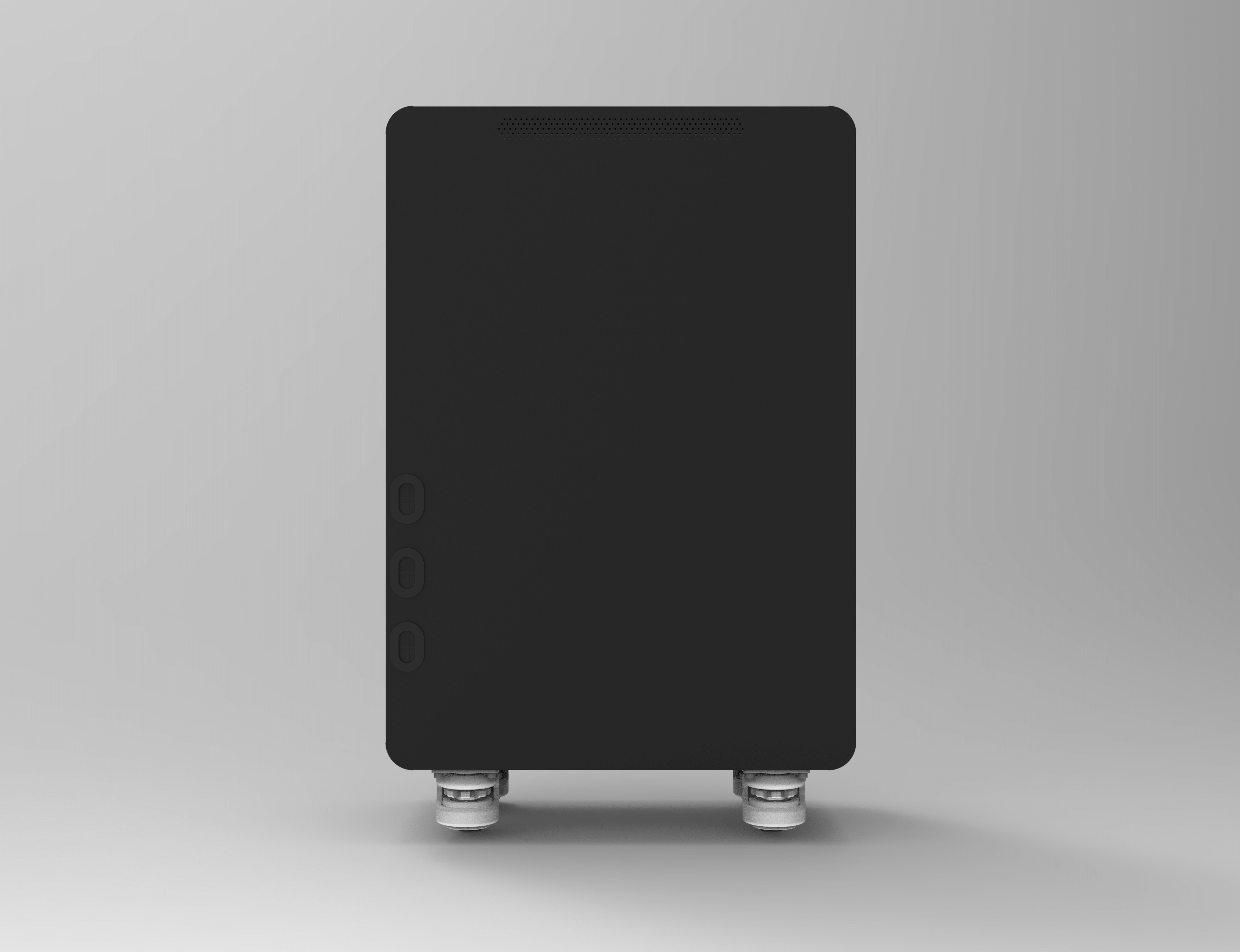

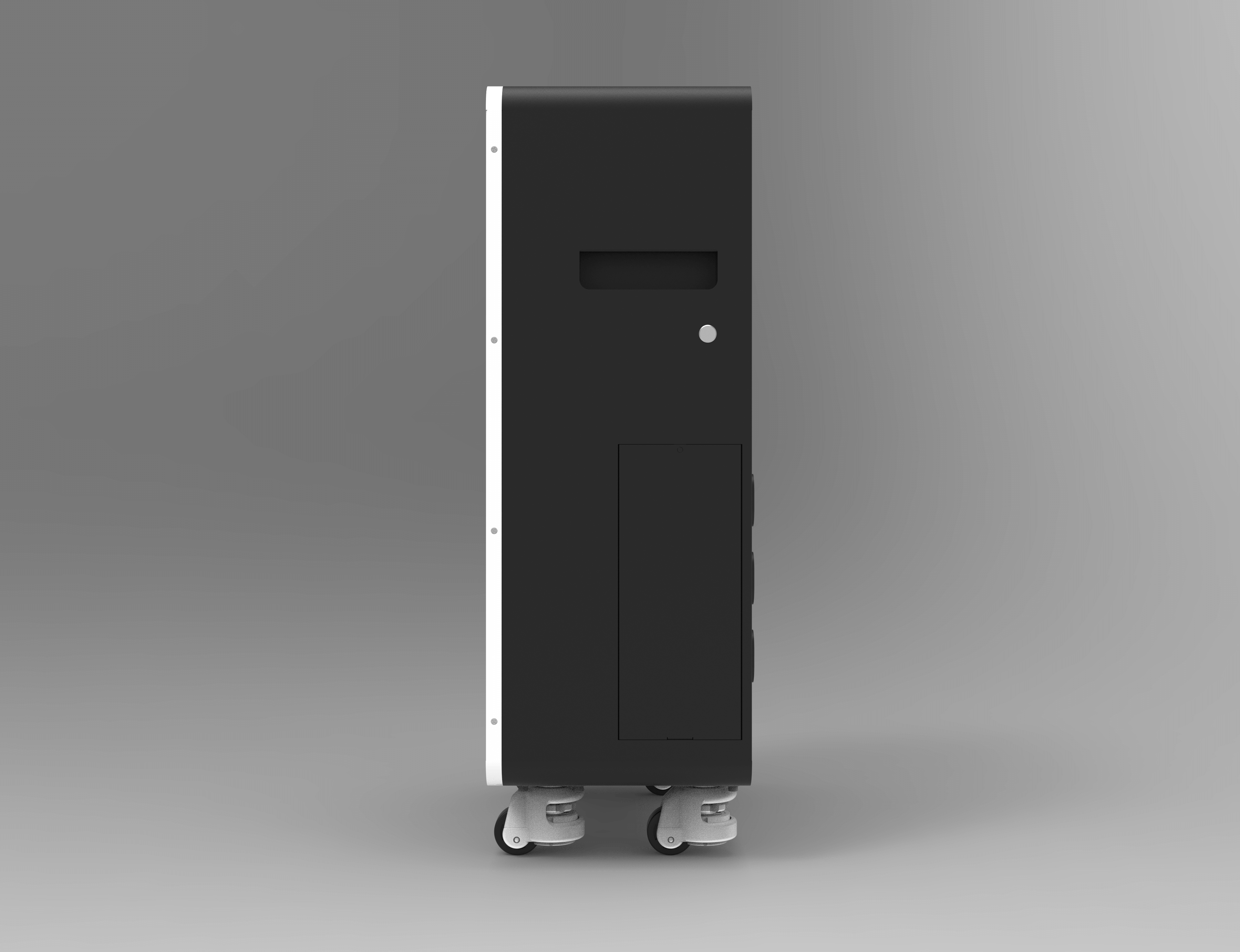

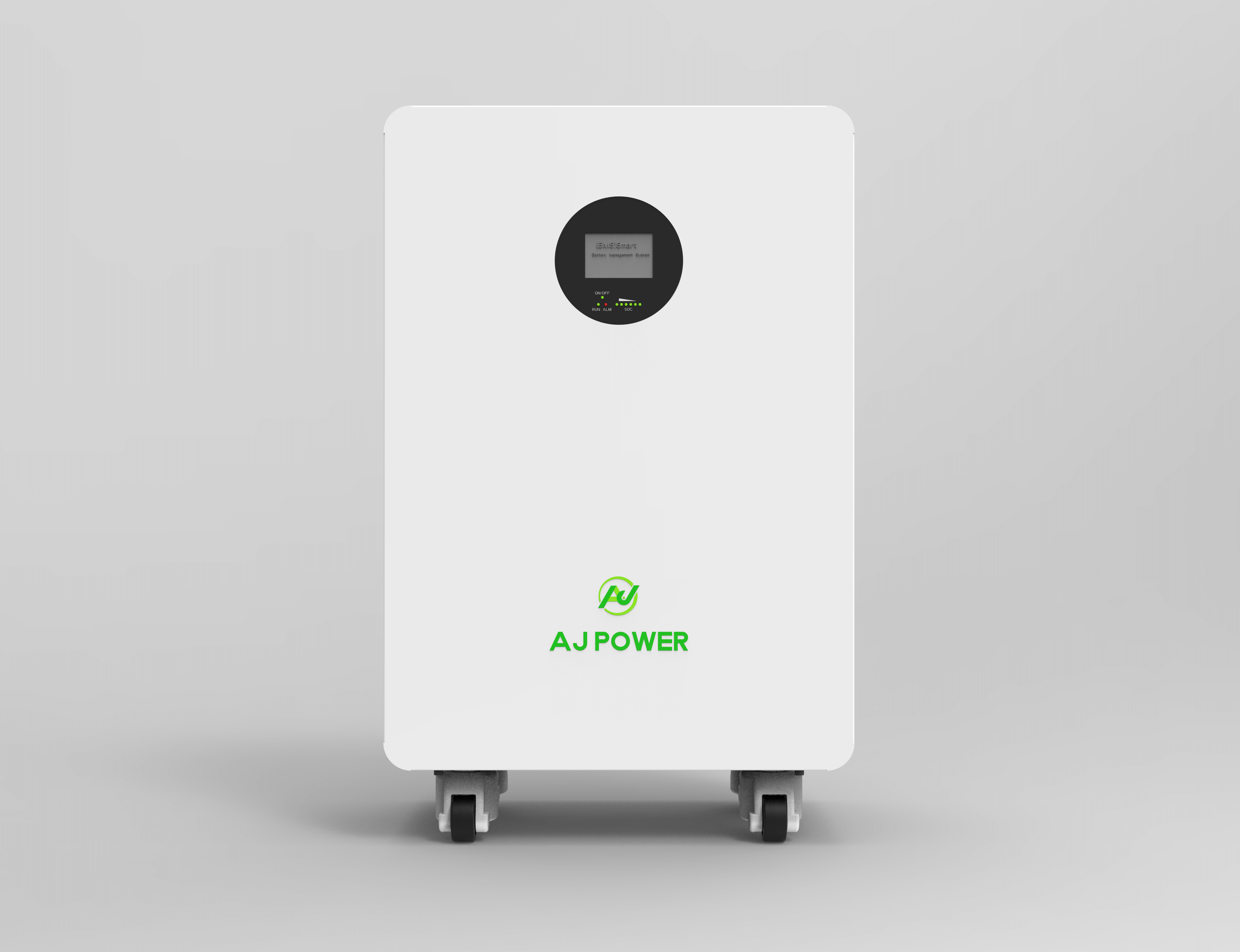

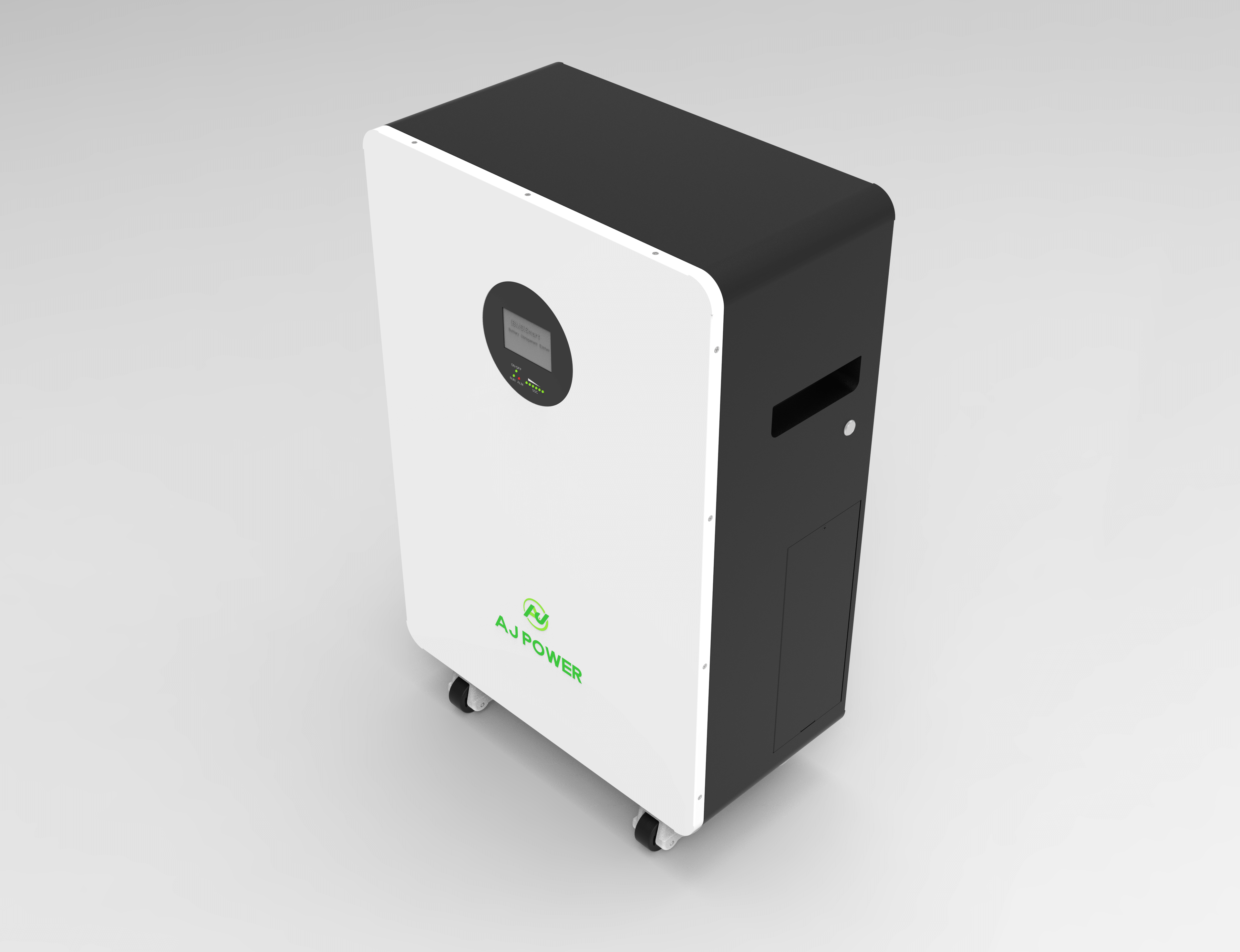

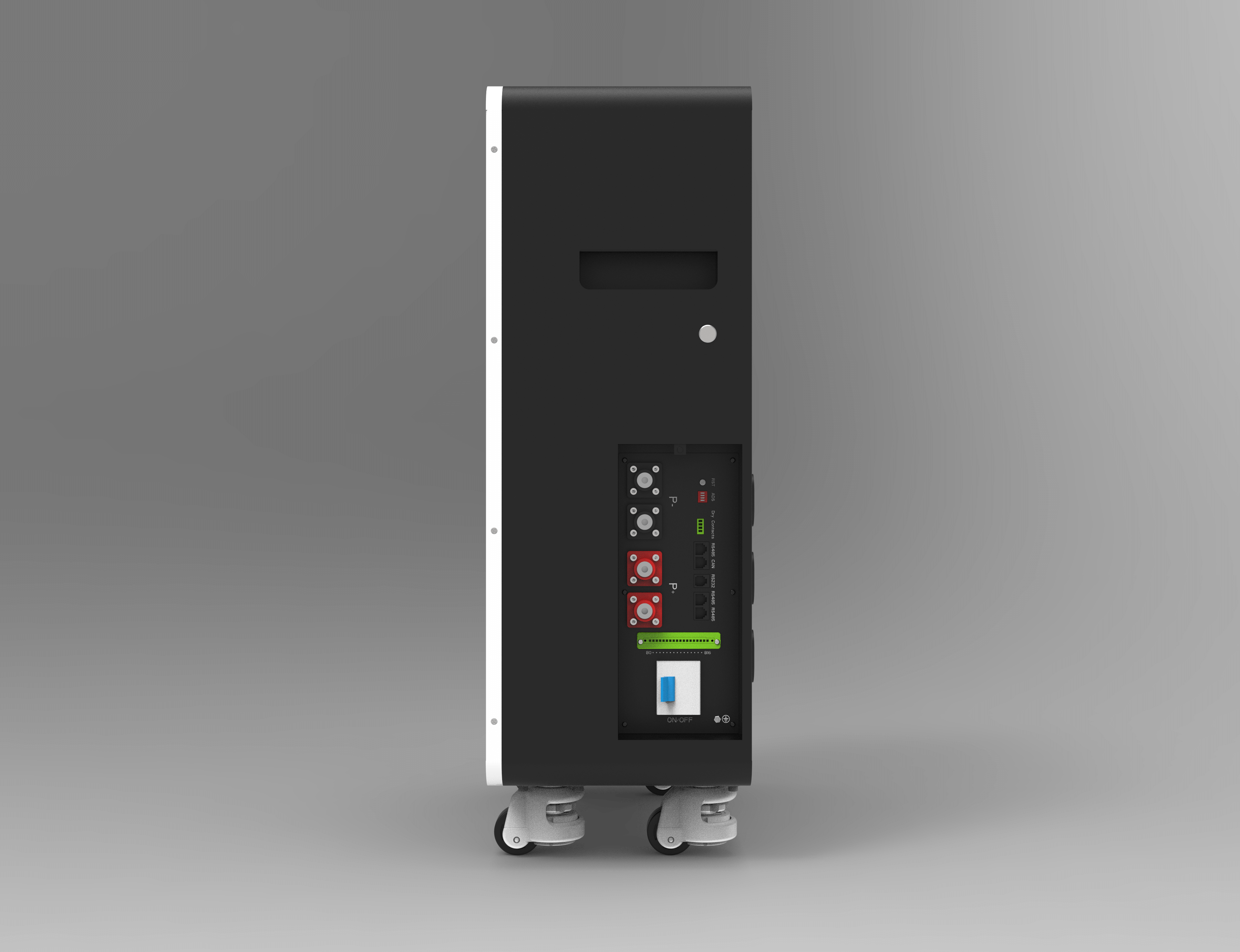

AJP16A 48V 300Ah 15kWh Wall-mounted Solar Energy Storage Lithium Battery | Home Photovoltaic Energy Storage System

This product is a 48V 300Ah 15kWh wall-mounted solar energy storage lithium battery, designed for home and commercial photovoltaic energy storage applications. It uses highly safe lithium iron phosphate (LiFePO4) cells and is equipped with an advanced intelligent battery management system (BMS) to ensure battery safety and service life. The product has high energy density, long cycle life, excellent compatibility, and is compatible with mainstream inverter brands. It is an ideal choice for green energy home energy storage.
Availability:
Quantity:
  • AJ-P16A

  • AJ POWER

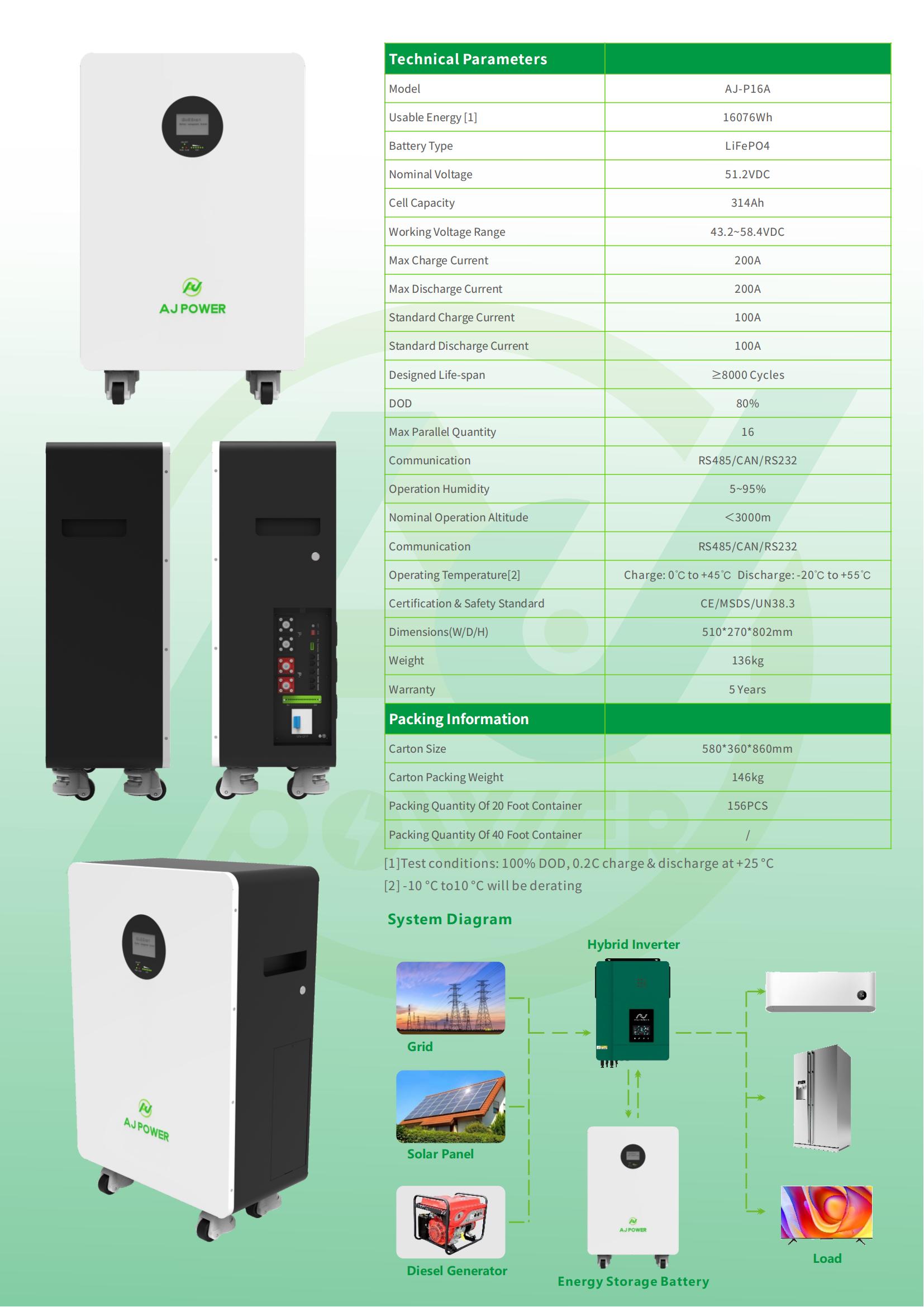

AJ-P16A DatasheetAJP16A 48V 300Ah 15kWh Wall-mounted Solar Energy Storage Lithium Battery | Home Photovoltaic Energy Storage System

Model
AJ-P16A
Usable Energy
16076Wh
Battery Type
LiFePO4
Nominal Voltage
51.2VDC
Cell Capacity
314Ah
Working Voltage Range
43.2~58.4VDC
Max Charge Current
200A
Max Discharge Current
200A
Standard Charge Current
100A
Standard Discharge Current
100A
Designed Life-span
≥8000 Cycles
DOD
80%
Max Parallel Quantity
16
Communication
RS485/CAN/RS232
Operation Humidity
5~95%
Nominal Operation Altitude
<3000m
Operating Temperature
Charge: 0°C to +45°C;Discharge:-20°C to +55°C
Certification & Safety Standard
CE/MSDS/UN38.3
Dimensions(W/D/H)
510*270*802mm
Weight
136kg
Warranty
15 years
