The home energy storage market is evolving fast. What started as a niche add-on for solar enthusiasts has become a mainstream priority for homeowners looking to cut energy costs, improve resilience, and reduce their carbon footprint. And in 2025, one shift is standing out above all others: the move toward stackable, modular battery designs.
From sleek wall-mounted units to expandable rack systems, the latest generation of home battery energy storage systems is being built around a simple idea—give homeowners more flexibility. That means systems that grow with your needs, look good in your home, and operate as safely and efficiently as possible. This post breaks down the key residential battery storage trends shaping the market this year and what they mean for homeowners making storage decisions today.

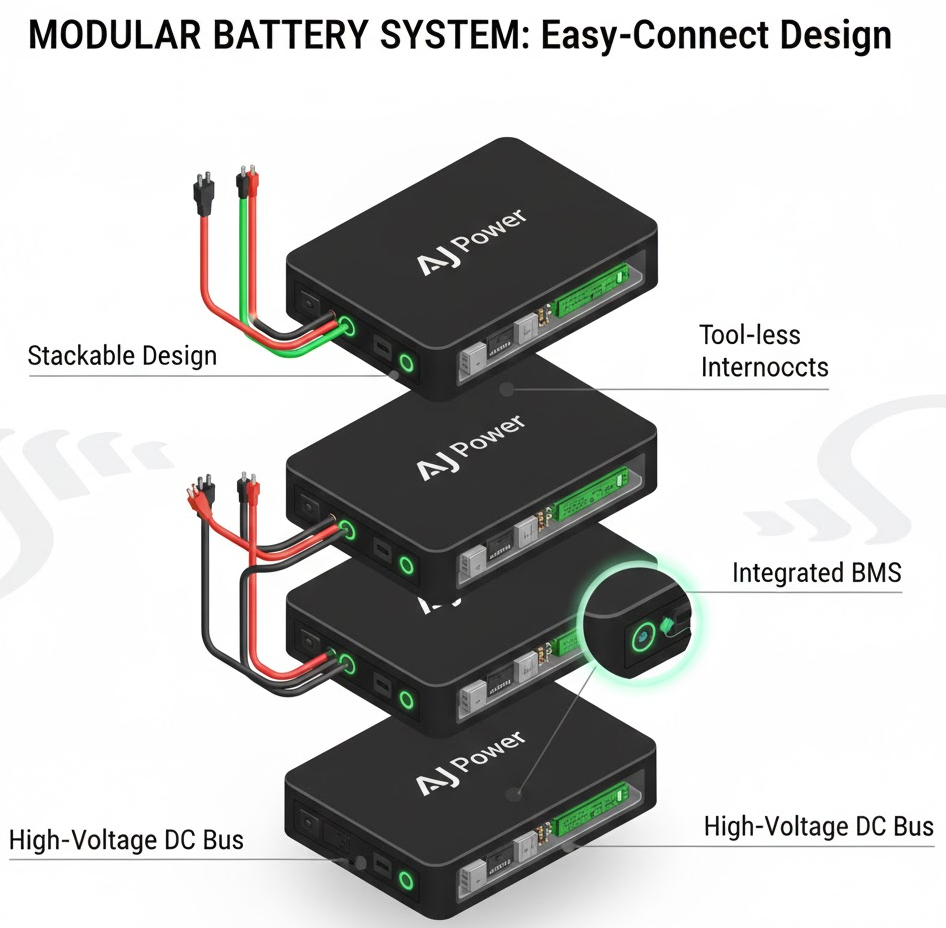

The biggest shift in residential battery storage right now is the move toward modular, stackable battery designs. Think of it like building with LEGO—you start with a base unit and add more capacity as your needs grow.
Traditional home battery systems were sold as fixed-capacity units. You'd buy a 10 kWh system, and that's what you had. If your energy needs changed—say, you added an EV charger or expanded your solar array—you'd need to replace the entire system. Modular systems solve this problem entirely.
A stackable battery allows homeowners to begin with a smaller, more affordable entry point and expand capacity over time by simply adding more modules. This makes the initial investment lower, the upgrade path simpler, and the overall system far more future-proof.
Ease of installation is another major advantage. Modular units are typically lighter, more compact, and designed to connect with minimal wiring complexity. For installers, this reduces labor time significantly. For homeowners, it means fewer disruptions and faster setup.
Feature | Fixed Capacity System | Modular/Stackable System |
|---|---|---|
Initial cost | Higher (full system upfront) | Lower (start small, scale up) |
Expandable capacity | No | Yes |
Ease of installation | Moderate | High |
Future-proofing | Limited | Strong |
Flexibility | Low | High |
Products like the AJ Power stackable LiFePO4 battery range illustrate this trend well. Their stackable 48V systems—available from 5 kWh up to 20 kWh and beyond—allow homeowners and installers to right-size a system from day one, then scale as demand increases.

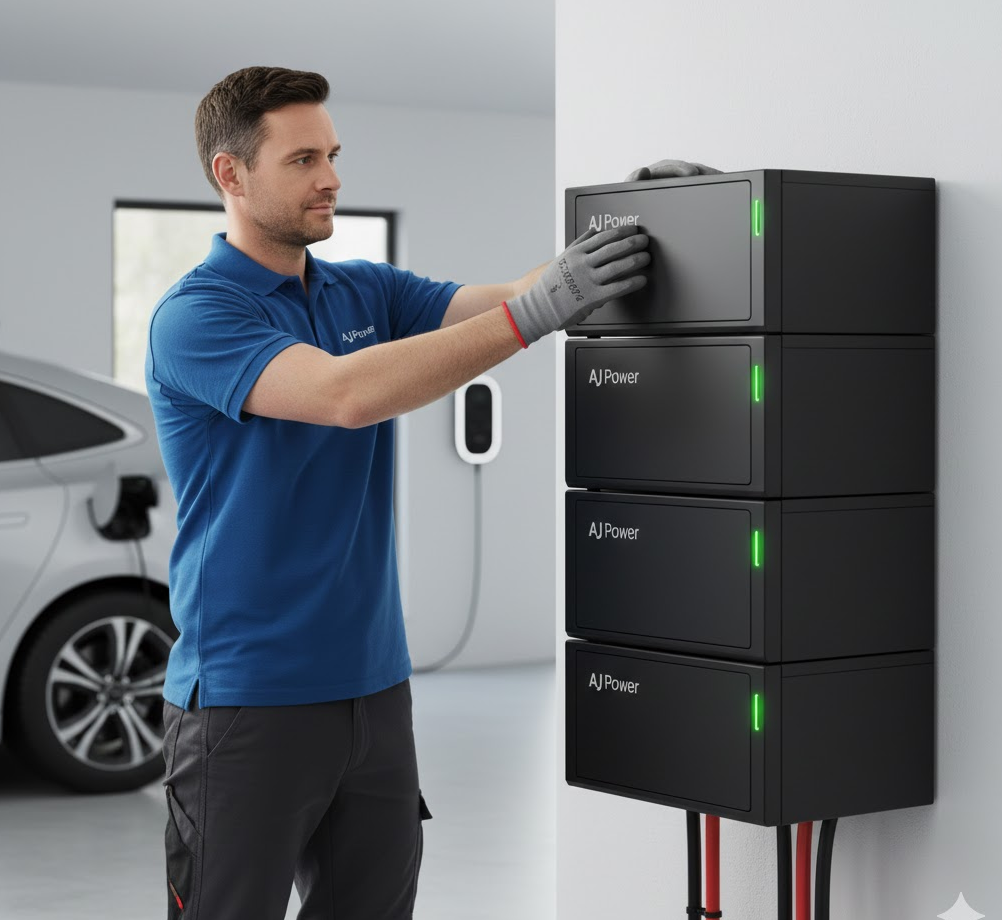

A few years ago, home battery systems were largely functional objects—installed in garages or utility rooms, out of sight. That's no longer the case. As battery storage moves into living spaces and open-plan homes, aesthetics have become a genuine purchasing factor.
Design-forward buyers now expect their energy storage systems to look the part. Slim profile wall-mounted batteries are increasingly popular, particularly in European and Australian markets where space is at a premium and interior design standards are high. Clean lines, neutral color palettes, and compact form factors have moved from "nice to have" to baseline expectations.
Garage integration is also a growing consideration. Many homeowners want their battery system to blend into the garage environment—flush against a wall, unobtrusive, and visually tidy. This has pushed manufacturers to invest more heavily in enclosure design, improving cable management, adding status indicator LEDs, and refining the overall visual presentation of their products.
Design Priority | Why It Matters in 2025 |
|---|---|
Slim wall-mounted profile | Space efficiency in modern homes |
Neutral, clean finishes | Blends with interior and garage aesthetics |
Compact form factor | Suitable for apartments and smaller homes |
Neat cable routing | Cleaner installation appearance |
Status indicators/displays | Usability and homeowner confidence |
The takeaway for buyers is clear: don't settle for a system that looks like an industrial component. The market now offers residential battery storage options that are purpose-built for domestic environments, combining performance with considered design.
One of the more technical—but critically important—residential battery storage trends involves the shift in system voltage. The market is seeing growing interest in high voltage (HV) battery systems alongside the still-popular low voltage (LV) options. Understanding the difference matters for both efficiency and installation safety.
Low voltage systems (typically 48V) have been the standard for residential storage for years. They're well-understood by installers, compatible with a wide range of inverters, and generally considered safer to handle during installation. The trade-off is that at lower voltages, more current is required to deliver the same power output, which can mean thicker cabling and slightly higher energy losses.
High voltage systems (typically 100V–450V) are gaining traction, particularly in larger homes or those with higher energy demands. They operate more efficiently at lower current levels, which reduces heat generation and energy loss in the system. However, they require certified installers with appropriate high voltage training, and not all hybrid inverters are compatible.
Factor | Low Voltage (48V) | High Voltage (100V–450V) |
|---|---|---|
Typical use case | Small to mid-size homes | Larger homes, higher demand |
Installation safety | Easier, wider installer compatibility | Requires HV-certified installers |
System efficiency | Good | Higher (lower current losses) |
Inverter compatibility | Broad | More selective |
Cost | Generally lower | Generally higher |
For most residential buyers in 2025, low voltage systems remain the practical choice—especially when paired with a modular, stackable architecture that allows capacity to grow over time. High voltage systems make more sense for homeowners with large solar arrays, EV charging loads, or whole-home backup requirements.
It's also worth noting that installation safety standards around HV systems are tightening in many markets. Homeowners should verify that any high voltage system they consider is being installed by a qualified professional and meets local regulatory requirements.
Putting these trends together, the picture for residential battery storage in 2025 is one of increasing sophistication. Systems are getting smarter, more flexible, and better designed. The market is rewarding manufacturers who prioritize expandable capacity, thoughtful aesthetics, and appropriate voltage architecture for different use cases.
Here's a quick summary of what to look for when evaluating a home battery energy storage system this year:
Modular architecture: Can you start small and add capacity later without replacing the whole system?
Design quality: Will the unit look appropriate in your home or garage?
Voltage compatibility: Does the system voltage match your inverter and your energy load requirements?
Installation simplicity: Is the system straightforward for a qualified installer to set up safely?
Warranty and cycle life: A good residential battery should offer at least 6,000 charge cycles and a minimum 5–10 year warranty.
The shift toward modular, design-conscious, and efficiency-optimized battery storage isn't a passing trend—it reflects how homeowners actually use energy today. Demand is variable. Homes change. Energy goals evolve. A rigid, fixed system bought in 2025 may already feel limiting by 2027.
The smartest investment is one that grows with you. If you're exploring your options, the AJ Power home energy storage range offers a broad selection of stackable LiFePO4 systems designed for residential use—scalable from 5 kWh to 20 kWh and beyond, with wall-mounted and floor-standing configurations to suit different spaces and installation requirements.
Evaluate your current energy needs, plan for what's coming, and choose a system built to handle both.
