String inverters are the most affordable solar inverter type and suit unshaded rooftops well. Microinverters offer superior shade tolerance and panel-level monitoring at a higher price. Hybrid solar inverters integrate energy storage battery management, making them ideal for homeowners who want backup power or off-grid capability.
Choosing a solar inverter is one of the most consequential decisions in any solar installation. The panels get most of the attention, but the inverter is what converts raw DC power into usable AC electricity—it's the functional core of the entire system. Get it wrong, and you could be leaving significant performance and savings on the table.

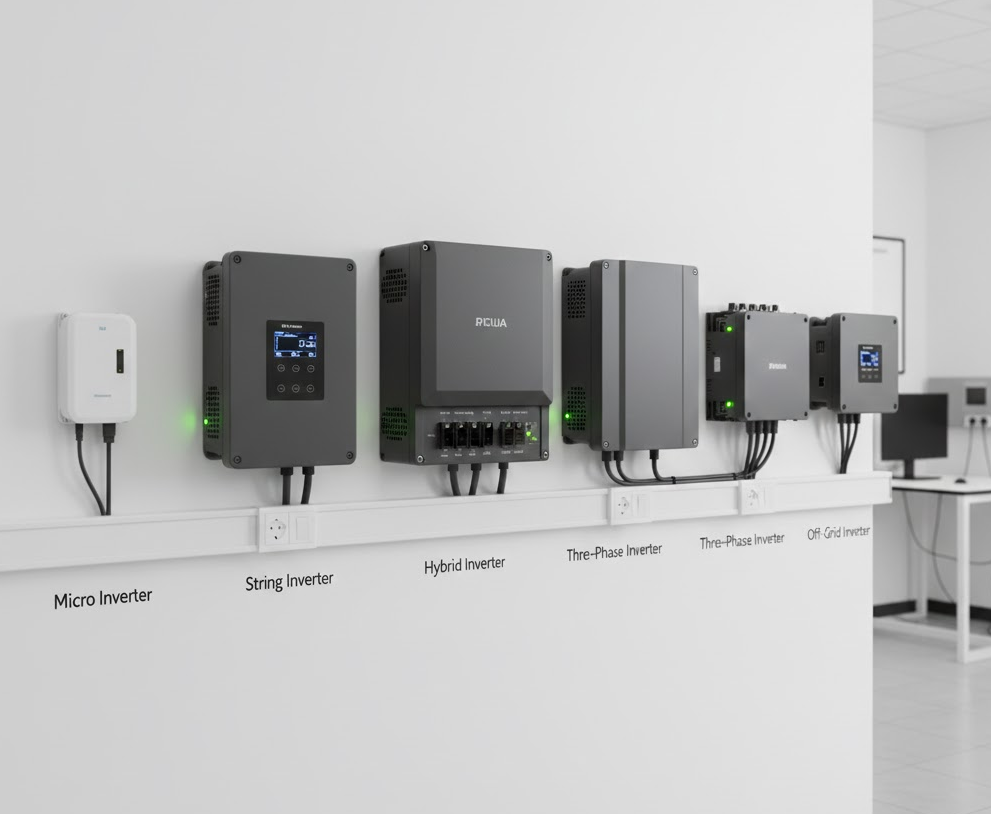

This guide breaks down the three main solar inverter types, covering how each fits into storage systems, where microinverters are pulling ahead, and what the numbers look like for installers making a buying decision.
A hybrid solar inverter combines the functions of a standard solar inverter with a battery charge controller. Rather than exporting all surplus solar energy to the grid, a hybrid inverter routes that energy into a home energy storage battery system first—then exports whatever remains.

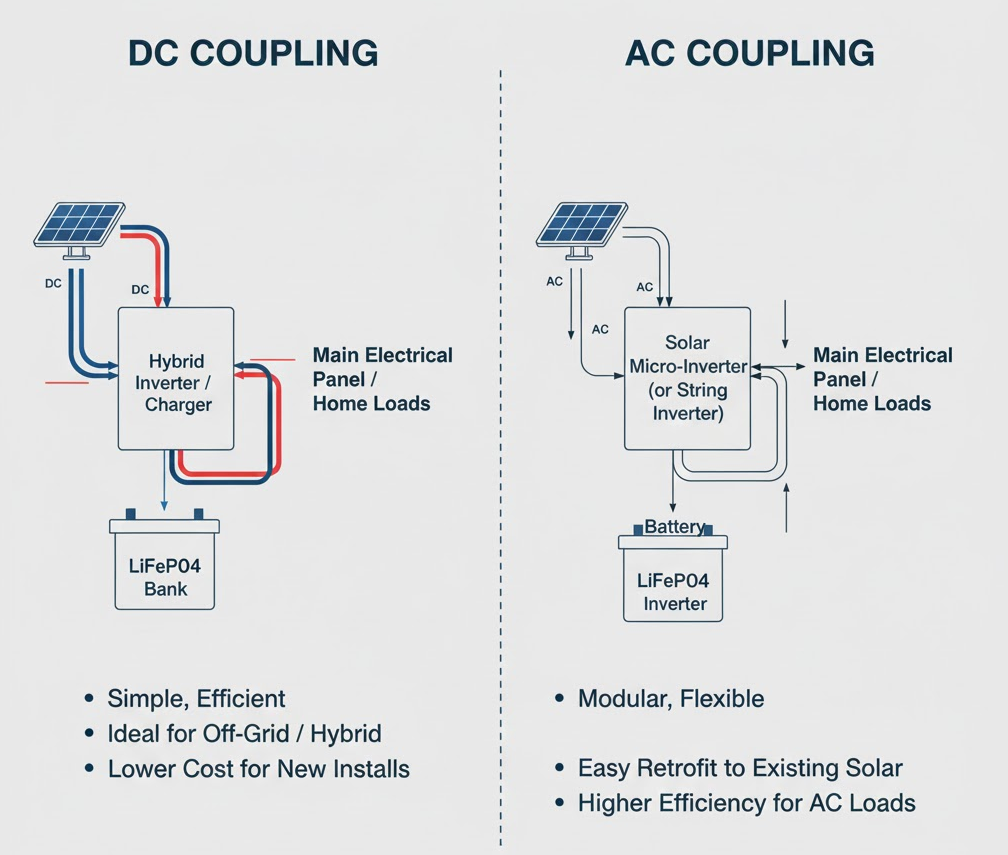

Two main configurations exist:
DC-coupled systems: The battery connects directly on the DC side of the inverter, before conversion happens. This is the more efficient arrangement, since energy is only converted once. DC-coupled setups are best chosen when batteries are installed at the same time as the solar array.
AC-coupled systems: The battery connects on the AC side, meaning energy is converted twice. Less efficient, but far easier to retrofit onto an existing solar installation. If a homeowner already has a working string inverter setup and wants to add storage, AC coupling avoids tearing out and replacing existing infrastructure.
AJ POWER's hybrid inverter range—including the NM-ECO series (3.6KW–6.2KW) and MAX series (8.2KW–10.2KW)—supports both on-grid and off-grid operation, with built-in MPPT solar charging, dual PV inputs, and smart battery charge design. These units run without a battery connected, which adds flexibility during phased installations.
String inverters treat the entire panel array as one unit. If one panel underperforms—due to shade, soiling, or a fault—output drops across the whole string. Microinverters eliminate this problem entirely.
A microinverter attaches to each individual panel, converting DC to AC at the source. Two advantages make this architecture increasingly attractive:
Shade tolerance: Because each panel operates independently, partial shading from a tree or chimney affects only that panel. The rest of the array continues at full capacity. For rooftops with complex geometry or surrounding obstructions, this translates to meaningfully higher annual yield.
Panel-level monitoring: Microinverters report performance data per panel, not per string. Installers and homeowners can pinpoint exactly which panel is underperforming and why—reducing diagnostic time and making warranty claims easier to substantiate.
The tradeoff is cost. Microinverters carry a higher upfront price per watt than string inverters, and with more units on a roof, there are more potential failure points. For simple, unshaded installations, the premium rarely justifies itself.
Factor | String Inverter | Microinverter | Hybrid Inverter |
|---|---|---|---|
Upfront Price | Lowest | Highest per watt | Mid-to-high |
Installation Time | Fast (single unit) | Longer (per panel) | Moderate |
Shade Tolerance | Poor | Excellent | Moderate (depends on config) |
Panel-Level Monitoring | No | Yes | Varies by model |
Battery Storage Ready | No (add-on needed) | No (add-on needed) | Yes (built-in) |
Retrofit Suitability | Good | Good | AC-coupled viable |
Typical Warranty | 5–12 years | 20–25 years | 5–10 years |
For installers working with budget-conscious clients on straightforward rooftops, string inverters remain the default. Microinverters make commercial sense when shade is a documented issue or when clients want granular performance visibility. Hybrid solar inverters are the right call when energy independence, backup power, or time-of-use optimization are priorities—particularly for off-grid or hybrid off-grid configurations.
No single inverter type wins across every scenario. The decision depends on roof conditions, budget, storage goals, and how likely a system is to be retrofitted later.
AJ POWER manufactures a full range of solar hybrid inverters—CE-certified and ISO9001-compliant—designed for both residential and commercial applications. Contact the AJ POWER team to discuss the right inverter for your specific system requirements.
