Views: 0 Author: Site Editor Publish Time: 2026-05-28 Origin: Site
Assembling a reliable LiFePO4 battery pack requires three critical factory stages: precise cell sorting based on internal resistance and voltage, robust physical connections using laser welding or bolted busbars, and the integration of a Battery Management System (BMS). Proper assembly ensures superior safety, structural integrity, and long-lasting home energy storage.
Demand for reliable power has pushed LiFePO4 energy storage into the spotlight. Homeowners and businesses alike are turning to lithium iron phosphate technology to capture solar energy, reduce grid dependence, and secure emergency backup power. The benefits of battery energy storage systems heavily rely on how well the internal components are built and tested before they ever reach a consumer.
A high-quality battery for home energy storage looks like a simple metal or plastic box from the outside. However, the interior houses a complex network of carefully calibrated cells, heavy-duty wiring, and intelligent computer boards. When a power battery inverter draws current from a power inverter battery pack, the system must deliver that energy smoothly without overheating or degrading prematurely.
Achieving this level of reliability requires strict manufacturing standards. By stepping inside the factory, consumers and industry professionals can better understand the meticulous processes that go into battery pack assembly. From the initial grading of individual cells to the final quality control checks, every step plays a vital role in delivering a safe and efficient energy solution.
Every high-capacity battery pack begins as a collection of individual lithium cells. Because minute manufacturing variances occur in all batteries, engineers cannot simply connect random cells together.
During the grading process, technicians place raw cells into automated testing machines. These machines charge and discharge the cells to measure their exact capacity. Cells that perform identically are grouped together. Grouping ensures that no single cell acts as a weak link during the charging or discharging cycle.
Two specific metrics determine cell compatibility: internal resistance and voltage matching. Internal resistance dictates how much heat a cell generates while operating. If one cell has a higher resistance than its neighbors, it will heat up faster and degrade quicker. Factory systems test every cell to ensure the resistance variance remains within fractions of a milliohm. Voltage matching is equally critical. When assembling a 51.2V home energy storage system, factories align cells with identical resting voltages to keep the entire battery pack balanced and stable over its expected 6000-cycle lifespan.
Once cells are sorted and matched, workers must connect them to allow electricity to flow. The chosen connection method directly influences the structural integrity and vibration resistance of the final product. Manufacturers typically choose between bolted busbars and laser welding.
Bolted busbars use metal plates fastened by screws to link cell terminals. This method makes the battery pack easier to service, as technicians can unbolt the busbars to replace a single faulty cell. Conversely, laser welding uses high-powered lasers to fuse metal connectors directly to the cell terminals. Laser welding creates a permanent, solid connection that lowers electrical resistance.
For stationary home energy storage, both methods perform well. However, for mobile applications or environments subject to movement, laser welding offers superior vibration resistance. Bolted connections can loosen over time if subjected to constant shaking, whereas a welded joint maintains its structural integrity indefinitely.
Feature | Laser Welding | Bolted Busbars |
|---|---|---|
Electrical Resistance | Very low | Low to moderate |
Structural Integrity | Excellent (Permanent fuse) | Good (Relies on torque) |
Vibration Resistance | High | Moderate (Bolts can loosen) |
Serviceability | Difficult (Requires specialized tools) | Easy (Can be unbolted manually) |
Best For | Mobile power, high-vibration areas | Stationary home energy storage |

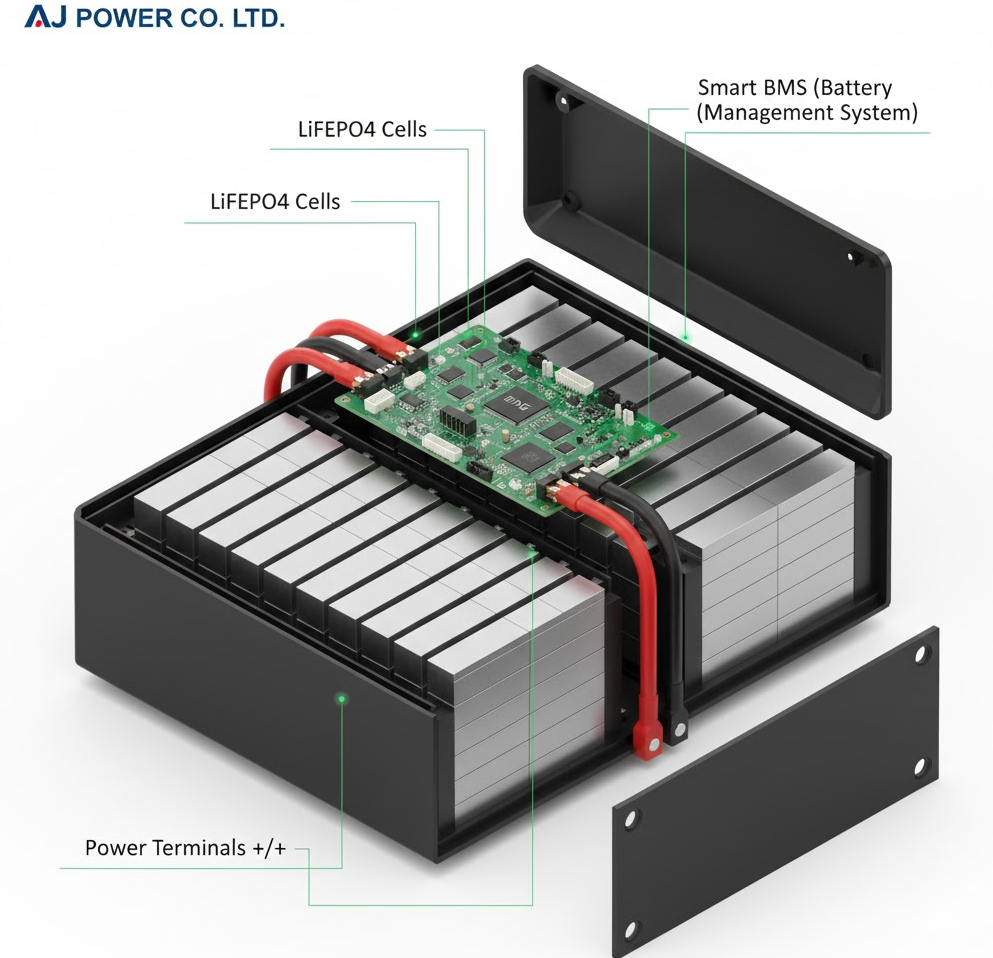

The hardware inside a battery pack cannot manage itself. To prevent dangerous operating conditions, factories install a Battery Management System (BMS). The BMS acts as the brain of the battery, constantly monitoring the internal environment.
During assembly, the BMS undergoes rigorous safety testing. Technicians intentionally simulate overcharging, deep discharging, and short circuits to ensure the BMS reacts correctly. A quality BMS will instantly sever the connection between the battery cells and the external power inverter if it detects a dangerous voltage spike or abnormal temperature rise.

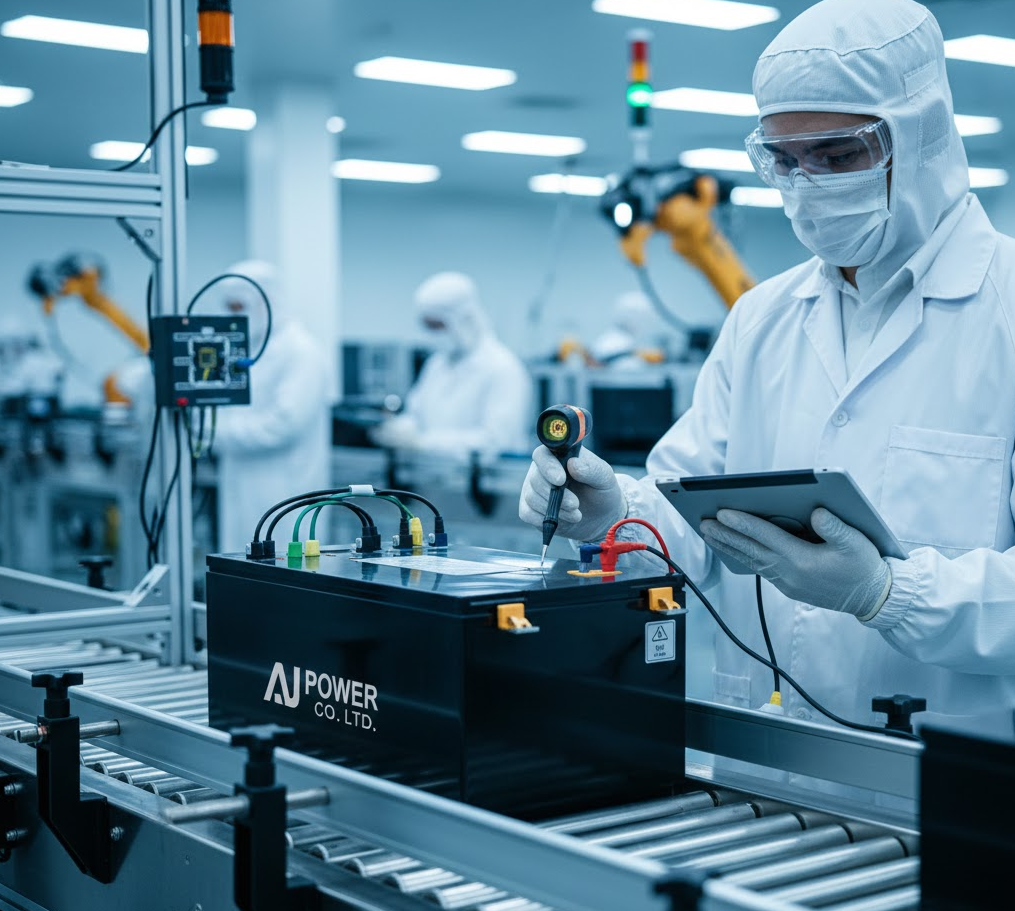

Before a completed battery pack leaves the factory floor, the BMS provides final quality control data. Quality assurance teams use Bluetooth or wired diagnostic tools to read the BMS history. They verify that the internal cell balancing functions properly and that all temperature sensors report accurate data. Systems from reputable manufacturers, such as AJ Power's 51.2V rack-mounted units, utilize built-in smart BMS technology to guarantee the system operates safely for decades.
Battery energy storage systems provide backup power during grid outages, lower electricity bills by storing solar energy for nighttime use, and reduce reliance on fossil fuels. They also stabilize the energy draw when paired with a compatible power battery inverter.
A well-assembled LiFePO4 energy storage unit typically lasts between 10 and 15 years. High-quality systems often boast a lifespan of 6000 cycles or more before their capacity drops below 80% of the original rating.
Poorly assembled battery packs suffer from unmatched cells, loose connections, or failing BMS units. These defects lead to premature capacity loss, overheating, and in severe cases, thermal runaway. Choosing products with rigorous factory quality control prevents these hazards.
Choose a bolted busbar system if you value serviceability and plan to maintain the battery yourself. Choose a laser-welded system if the battery will face physical movement or if you want the absolute lowest electrical resistance for high-draw applications.
