DC-coupled battery storage is generally more efficient for new solar installations because energy moves directly from the solar panels to the battery without extra conversion steps. AC-coupled systems, however, offer easier retrofitting for homes that already have solar panels installed, since the battery connects to the home's existing AC wiring. The right choice depends on whether you're building a new home energy storage system or adding one to an existing setup.
Choosing the right home battery energy storage system isn't just about picking a battery pack. It's about understanding how that battery talks to your solar panels, your inverter, and your home's electrical panel. Two configurations dominate the market: AC-coupled and DC-coupled systems. Each has a distinct wiring path, cost profile, and efficiency outcome, and getting this decision right can affect how much value you get from your energy storage battery for years to come.
Homeowners exploring solar battery options are often surprised to learn that the "coupling" method matters just as much as the battery's capacity or chemistry. A mismatch between your existing solar setup and your chosen battery for home energy storage can lead to unnecessary energy loss, higher installation costs, or compatibility headaches with your inverter manufacturer. This guide breaks down both configurations in plain terms, compares their strengths and weaknesses, and helps you figure out which setup fits your situation.
Whether you're installing a brand-new solar-plus-storage system or adding a battery pack to a home energy storage system that already has solar panels, this guide will help you make an informed decision that protects your investment and maximizes your energy independence.
In a DC-coupled system, the solar panels, battery, and inverter are wired together on the direct current (DC) side of the system. Solar energy flows from the panels into a single hybrid inverter, which manages both the battery charging and the conversion of DC power into usable AC power for your home.
Because the solar energy doesn't need to be converted multiple times before reaching the battery, DC-coupled systems typically lose less energy in the process. This makes them a popular choice among home energy storage suppliers building new installations from scratch, where the battery, inverter, and solar array can all be planned and installed together.
A single hybrid inverter manages solar charging, battery storage, and AC conversion.
Energy conversion losses are minimized since power moves through fewer stages.
Best suited for new solar installations where the battery and panels are installed at the same time.
Often more affordable upfront since only one inverter is required.
Products like the AJP16A 48V 300Ah 15kWh wall-mounted solar energy storage lithium battery are designed to integrate directly with compatible hybrid inverters, making them a strong fit for homeowners planning a DC-coupled setup from the ground up.
AC-coupled systems take a different approach. Here, the solar panels connect to their own solar inverter, converting DC power to AC power for immediate home use. The battery then connects separately to the home's AC electrical panel through its own battery inverter, which converts AC power back to DC for storage, and back to AC again when it's time to use that stored energy.
This extra conversion step means AC-coupled systems lose a bit more energy overall. But the trade-off is flexibility. Because the battery connects independently from the solar array, AC-coupled systems are much easier to retrofit onto homes that already have solar panels and inverters in place.
The battery and solar panels each have their own, separate inverter.
Easier to add to an existing solar power system without replacing the solar inverter.
Slightly less efficient due to multiple DC-to-AC-to-DC conversions.
Often used for backup power applications, since the battery can charge from the grid as well as solar.

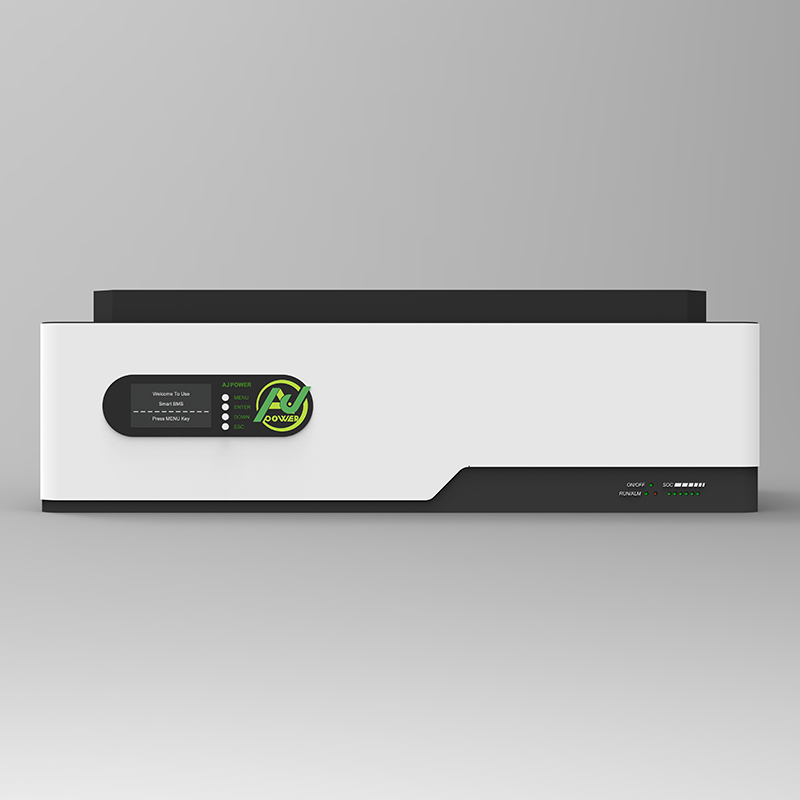

The AJP5C 51.2V 100AH home energy storage battery is a good example of a flexible battery pack for home energy storage that can support off-grid and backup power use cases where AC coupling or standalone configurations make practical sense.
Feature | DC-Coupled Storage | AC-Coupled Storage |
|---|---|---|
Energy conversion steps | Fewer (single hybrid inverter) | More (separate solar and battery inverters) |
Round-trip efficiency | Generally higher (around 95-98%) | Generally lower (around 90-95%) |
Best for | New solar + battery installations | Retrofitting existing solar systems |
Inverter requirements | One hybrid inverter for solar and battery | Separate inverters for solar and battery |
Installation complexity | Simpler for new builds | Simpler for existing solar systems |
Upfront cost | Often lower for new installs | Can be higher due to additional inverter |
Backup power flexibility | Battery charges primarily from solar | Battery can charge from solar or grid |
Scalability | Limited by hybrid inverter capacity | Easier to add additional battery capacity separately |
The right answer depends heavily on your current setup and goals.
Choose DC-coupled storage if you're installing solar panels and a battery for home energy storage at the same time, and efficiency is a top priority. Since the entire system is designed together, you'll minimize energy loss and often reduce installation costs by avoiding a second inverter.
Choose AC-coupled storage if you already have solar panels installed and want to add a battery pack for home energy storage without replacing your existing solar inverter. This configuration also makes sense if you want a battery that can charge from the grid during off-peak hours, not just from solar production.
Choose AC-coupled storage if you live in an area prone to frequent grid outages and want backup power that doesn't depend solely on sunlight. Since AC-coupled batteries can charge from the grid, they offer more flexibility for emergency preparedness.
Choose DC-coupled storage if you're working with a home energy storage supplier to design a new system and want the simplest possible wiring configuration with fewer points of potential failure.
Regardless of which coupling method you choose, a few factors matter across the board when evaluating power solar battery options:
Battery chemistry. Lithium iron phosphate (LiFePO4) batteries, like those used in the AJP16A and AJP5C models, are widely favored for home energy storage due to their thermal stability and long cycle life compared to older lithium-ion chemistries.
Cycle life and warranty. A battery's designed lifespan, measured in charge-discharge cycles, tells you how long it should perform reliably. The AJP16A, for example, is rated for 8,000+ cycles with an 80% depth of discharge, backed by a 15-year warranty.
Depth of discharge (DOD). This measures how much of the battery's total capacity can be used without harming its lifespan. Higher DOD ratings, like the 100% DOD on the AJP5C, mean you get more usable energy out of the same battery size.
Inverter compatibility. Before purchasing a battery, confirm it works with your inverter manufacturer's equipment, or plan to purchase a compatible hybrid inverter alongside it if going the DC-coupled route.
Scalability. If you expect your energy needs to grow, look for systems that support parallel battery connections. Both the AJP16A and AJP5C support up to 16 units in parallel, allowing homeowners to expand capacity over time.
Deciding between AC-coupled and DC-coupled battery storage comes down to timing and goals. New installations generally benefit from the streamlined efficiency of DC coupling, while existing solar setups are often better served by the flexibility of AC coupling. Neither option is universally "better"—the right choice is the one that fits your home's current electrical infrastructure and your long-term energy goals.
Before making a final decision, consult with a qualified installer or a home energy storage supplier who can assess your existing solar setup, your household energy consumption, and your backup power priorities. A well-matched battery for home energy storage, whether AC- or DC-coupled, can meaningfully reduce your electricity bills, increase your resilience during outages, and move your household closer to energy independence.
Is DC-coupled storage more expensive than AC-coupled storage?
Not necessarily. DC-coupled systems often cost less for new installations since they require only one hybrid inverter. AC-coupled systems can cost more upfront when retrofitting, due to the need for a separate battery inverter, but they avoid the cost of replacing an existing solar inverter.
Can I switch from AC-coupled to DC-coupled storage later?
Switching configurations typically requires replacing your inverter setup, which adds cost and complexity. It's more practical to choose the configuration that fits your long-term plans from the start, rather than switching later.
How long do home battery energy storage systems typically last?
Most lithium iron phosphate home batteries, like the AJP16A, are rated for 6,000 to 8,000+ charge cycles, which can translate to 15 years or more of regular use depending on how the battery is cycled.
Does the coupling method affect how long the battery lasts during an outage?
Coupling method doesn't directly affect battery lifespan, but it can affect how the battery charges during an outage. AC-coupled systems can often charge from the grid when available, while DC-coupled systems typically rely on solar production to recharge during extended outages.
Can AC-coupled and DC-coupled batteries both work off-grid?
Yes, both configurations can support off-grid use, though DC-coupled systems are often preferred for dedicated off-grid setups due to their higher efficiency, since every bit of solar energy counts when there's no grid connection as backup.
